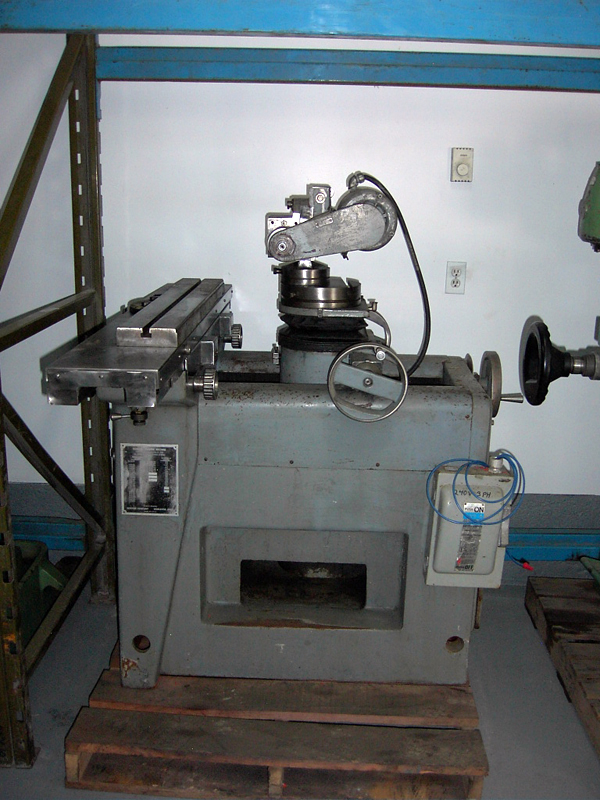

Norton Tool & Cutter Grinder
Model : No. 202 Tilt Head
Swing : 12"
Max. Length Between Center & Work Head :
21"
Max. Length Between Centers : 27"
Table Size : 5-1/4" x 36"
Longitudinal Table Travel : 17-1/2"
Cross Movement of Wheel Slide : 8-1/2"
Vertical Movement of Wheel Head : 8-1/2"

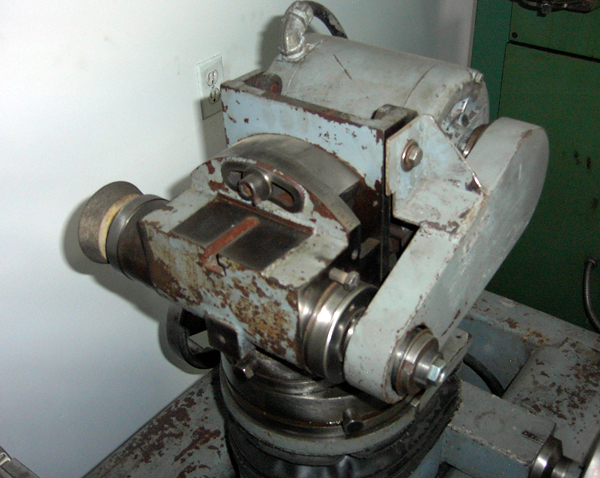

Wheel Head Tilts : +/- 15 Deg.
Wheel Head Swivels : 360 Deg.
Table Swivels : +/- 60 Deg.
Machine Weight, Approx. : 2300 Lbs.
1 HP Spindle Motor 575/3/60
Prix :
|
