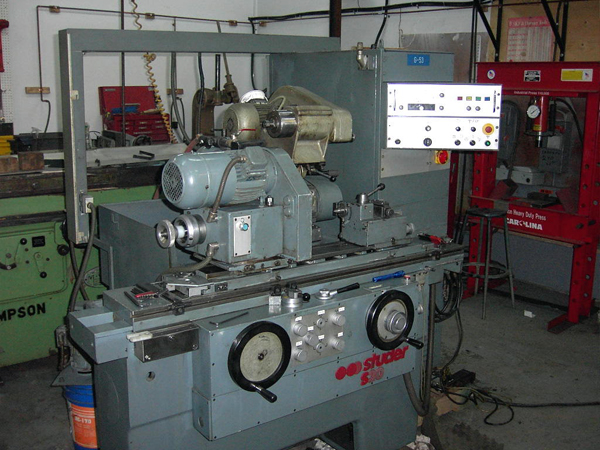

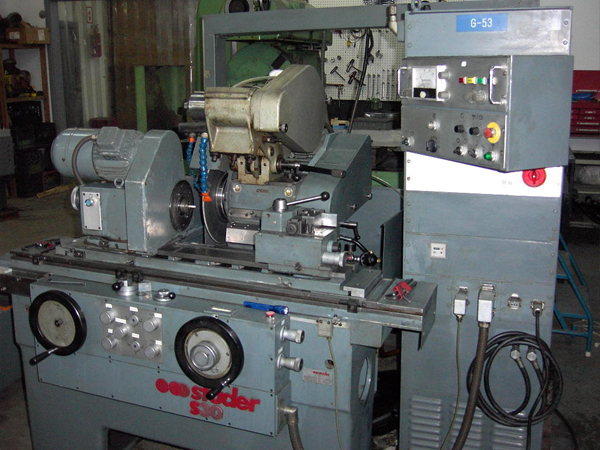

Rectifieuse cylindrique STUDER S 30-400
Specifications selon le manuel technique
Cette rectifieuse est en EXCELLENTE condition
SPECIFICATIONS
Maximum Swing : 9.8"
Maximum Distance between Centers : 15.75"
Wheelhead Swivel : +45 deg.
Workhead Swivel : 0-90 deg.
Table Swivel : 12 deg
Max. Table Travel : 17.32"

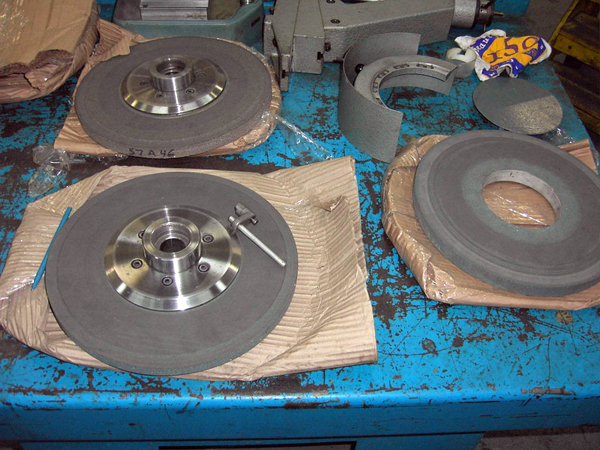

Grinding Wheel Size, Maximum : 16" x 2" x 8"
Bore(4Hp)
Table Speeds, Variable : .17-18 FPM
Workhead Speeds, Variable : 30 - 675 RPM
Spindle Nose Taper : No. 5
Dwell : 0-6 Sec
Plunge Feed : .000008 - .004 IPS
Intermittent Feed : .00004 - .002"
Maximum Weight between Centers : 176 lbs
Wheelhead Rapid Approach : 1.58"(40 mm)
Maximum Plunge Depth (in diameter) : .07"
Approximate Weight : 4,200 lbs |
