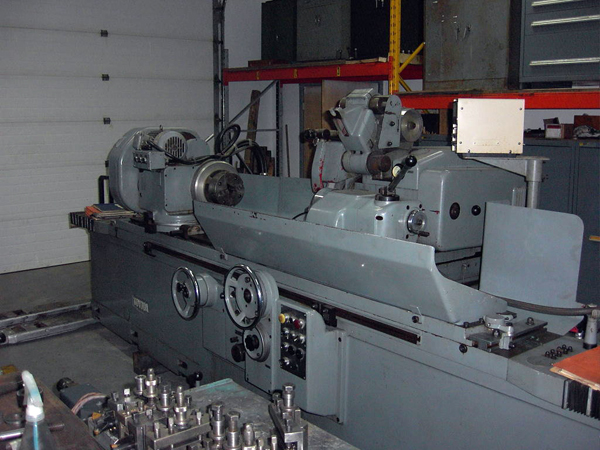

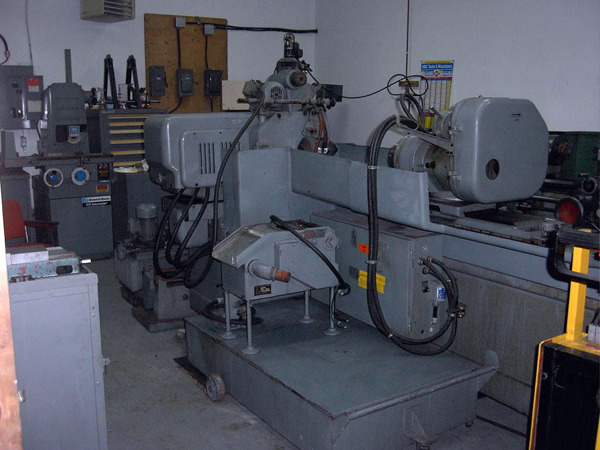

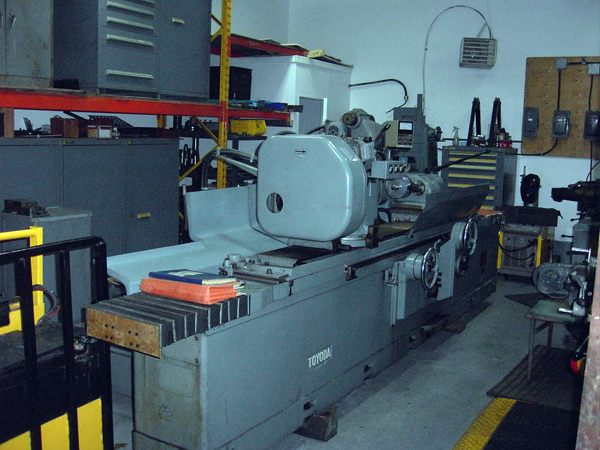

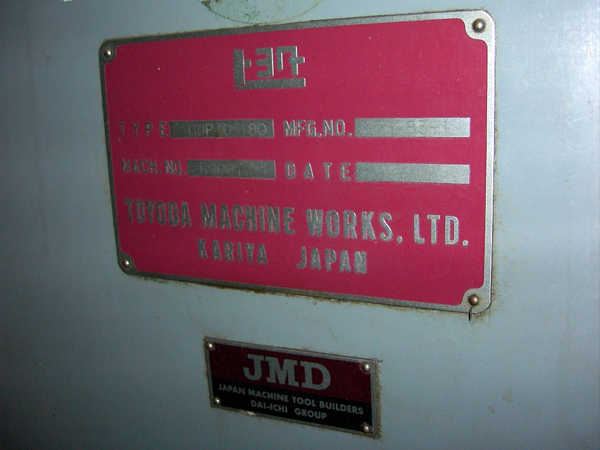

Rectifieuse Toyoda universal OD grinder LIKE NEW
Very well equipped
Capacity : 19.7'' x 71''

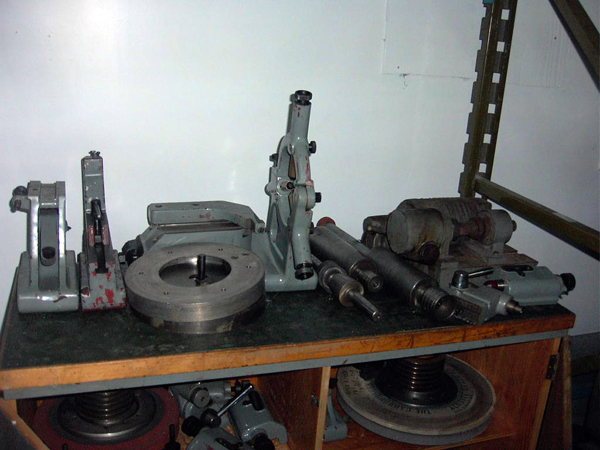

Capacity of steady rest : 0.375'' to 8''
Max load between center : 1100 lbs

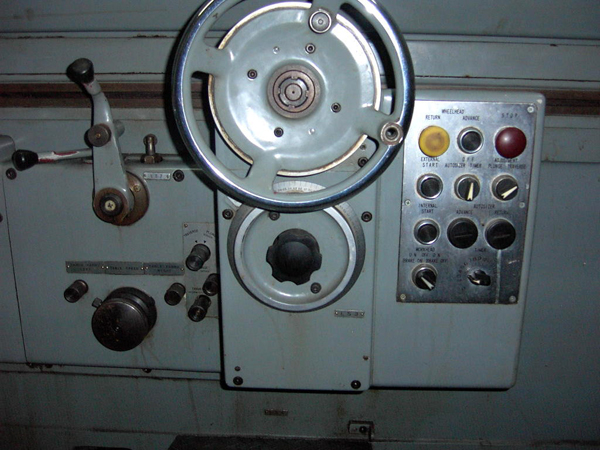

Stroke of wheelhead
Total : 11.6''
Through micrometric mechanism : 6.5''
Additional backward stroke : 3.5''
Hydraulic rapid feed stroke : 1.6''
Hydraulic stock removal : 0.0315''
Auto infeed(pickfeed) : 0.0001'' - 0.0016''
Infeed per handwheel turn : 0.040''
Graduation of wheelhead handwheel : 0.0001''
Swivel angle : 30 deg each side

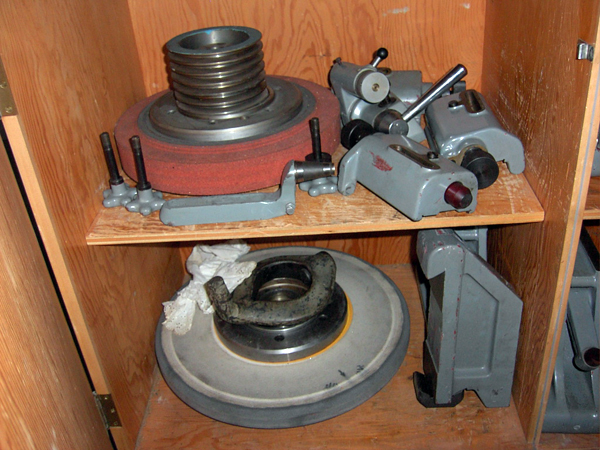

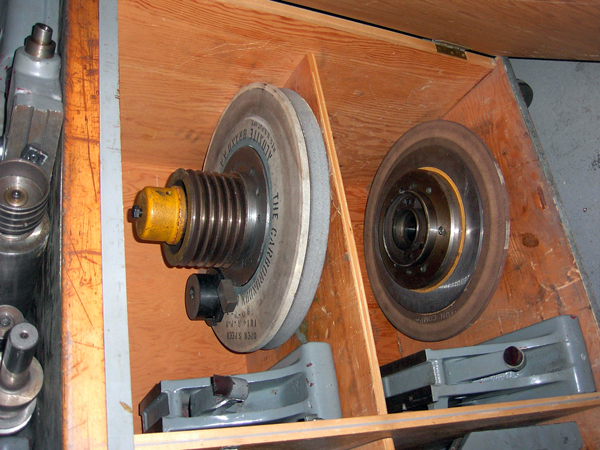

Grinding wheel(standard) : 20'' x 3'' x 8''(hole)
Maximum width : 4.4''(110 mm)
RPM : 1130-1300-1530
Iternal grinding fixture : hinged type with
standard G790 type spindle

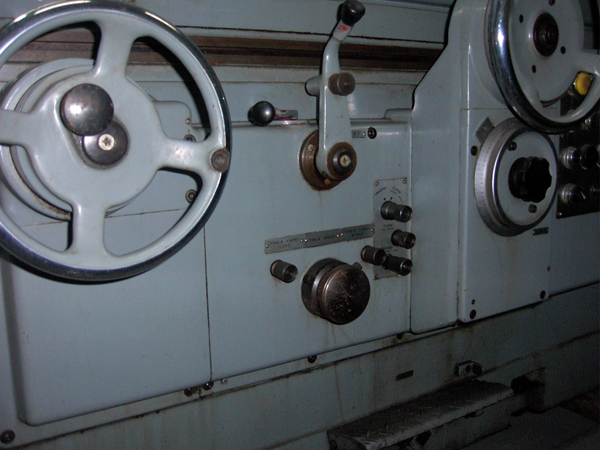

Table
Swivel angle to wheelhead side : 8º 20'
Swivel angle to operator side : 3º
Speed range : 2-160 inch/min
Minimum reciprocating stroke : 0.120'' - 0.200''
Feed per handwheel turn(2 stage change type) :
0.120'' or 1.2''

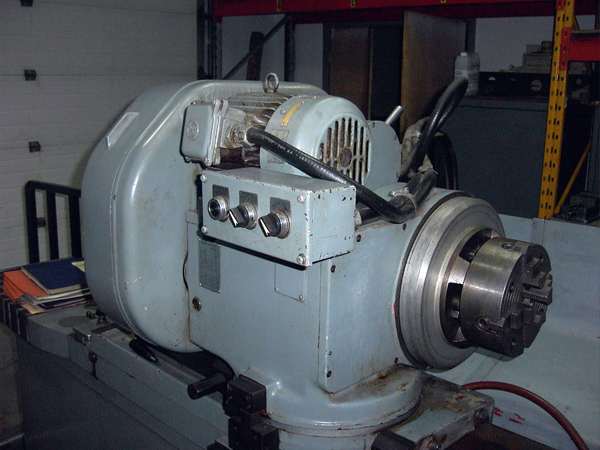

Workead
Center : morse no 5
Spindle hole : 1.5''
Spindle speed s : 16-25-40-64-100-160
Max load for live spindle : 177 Lbs
Max swivel angle : 90º
Footstock : Manual or Hydraulic
Center : morse no 5
Stroke1.18''
Motors
Wheel : 7.5 Hp
Workhead : 1 Hp
Internal : 1 Hp
hydraulic : 2 Hp
Wheel spindle bearing pump : 1/3 Hp
Coolant pump : 1/3 Hp
Tanks capacity
Wheel spindle bearing : 3.4 gals
Hydraulic : 31.8 gals
Coolant : 79.5 gals
Floor space required : 260'' x 106'' x 62''(height)
Actual dimensions : 186'' x 70''
Weight : 13420 Lbs

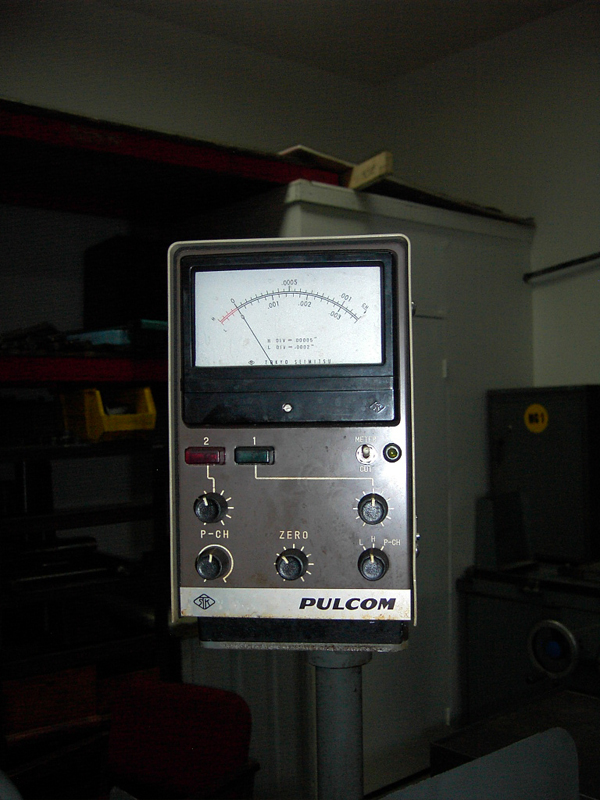

Features
- Wheel can be fitted to the right or left of the wheelhead
- Internal
- magnetic separetor
- Electronic wheel dresser
- Spark out timer
- Complete manual included
|
