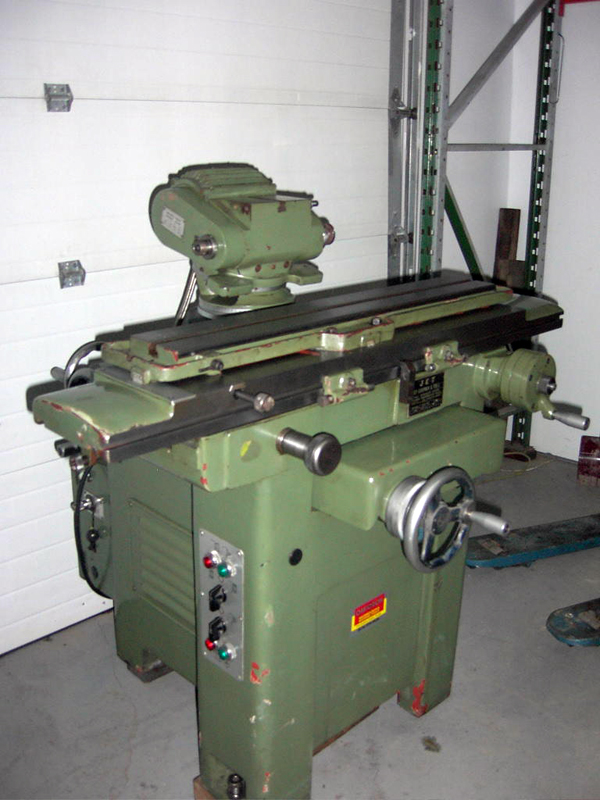

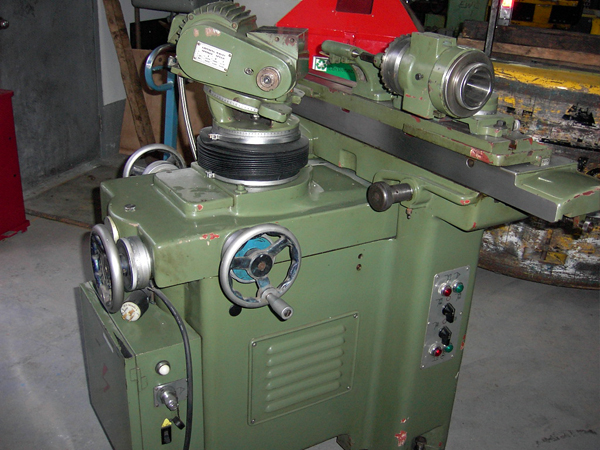

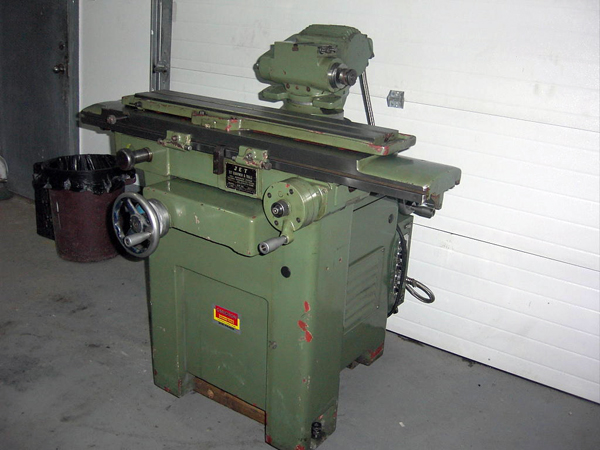

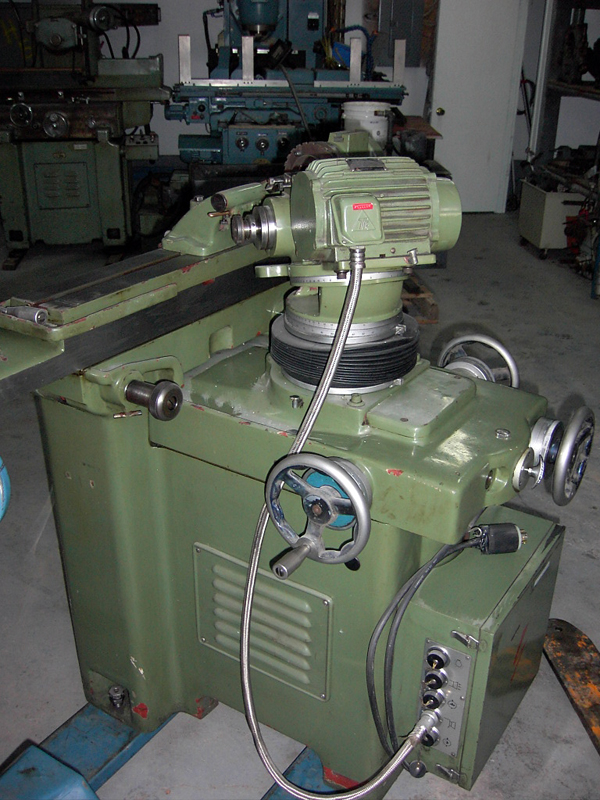

Jet Universal Cutter & Tool Grinder
Specifications:
Swing over table : 10"
Distance between centers : 271/2"
Distance between workhead & tail stock :
223/4"
Workhead spindle taper one end -- other end :
ASA No. 50 -- MT No. 5
Table surface : 55/16 x 37"
Longitudinal movement of table : 16"
Cross movement of saddle : 10"
Table swivel : ±60°
Graduation on end of table for taper : ±10°
Vertical movement of wheel head : 10"
Wheel head tilts : ±15°
Wheel head swivel : 360°
From wheel head spindle center to top of table :
2 to 12"
From wheel head spindle center to T-slot center line
: 61/2" to 161/2"
Grinding wheel spindle speed : 2600, 3700,
6200 RPM
Grinding wheel spindle drive motor : 1 HP
Required floor space : 61 x 661/2"
Net weight of machine : 2000 Lbs
Ce grinder est presque neuf
Prix : 7000$
Un autre aussi neuf est disponible sans outillage a 4500$
|
