TOUR IKEGAI MODELE

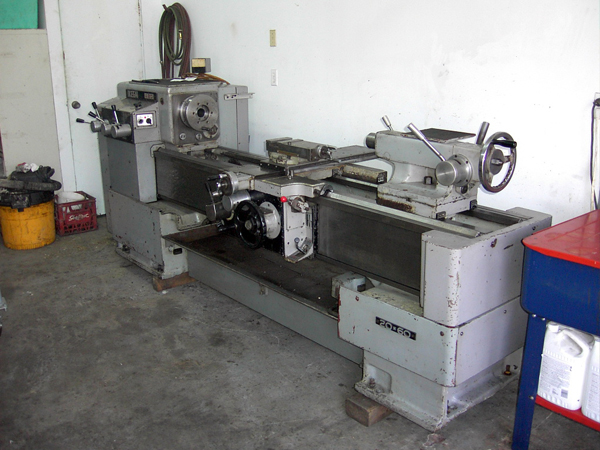

TOUR 20"x60" IKEGAI MODELE: A20
SPECIFICATIONS
SWING OVER BED : 20"
SWING OVER CROSS SLIDE : 11-3/8"
DISTANCE BETWEEN CENTERS : 60"
SPINDLE NOSE, CAMLOCK SIZE : D1-6
SPINDLE SPEEDS (13) : 18 - 2,000 RPM

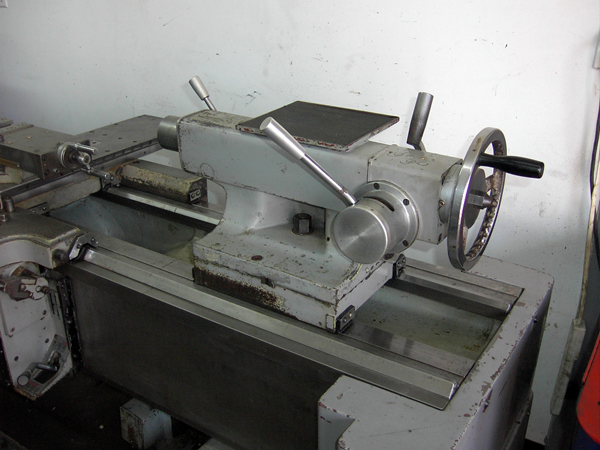

TAILSTOCK SPINDLE TAPER : #5 MORSE
TAILSTOCK SPINDLE TRAVEL : 5-7/8"
WIDTH OF BED : 16-3/4"
FEEDS
COARSE (24) : .035 - .5 IPR
NORMAL (24) : .0022 - .031 IPR
FINE (24) : .0015 - .02 IPR
THREADS
INCH : 9/16 - 80 TPI
METRIC : .5 - 32 mm
DIMENSIONS : 155" x 55" x 61"H
APPROXIMATE WEIGHT : 5,700 LBS
|
